Stainless Steel DB9 Alloy & Brace Hardware Kit

**OUR RAILS/ RAIL KITS NOW COME 100 GRIT GARNET MEDIA BLASTED FREE OF CHARGE**

**Kits now include additional M4x35mm Button Head Bolt for the DIY Mac beta**

This is all of the hardware required for building the DB9 Alloy as per the original file's required hardware list in the original file's "read me" information. Kits now include additional M4x35mm Button Head Bolt for the DIY Mac beta. Kit comes with or without the metal side rails, so be sure to select your choice in the "options". All Stainless Steel hardware unless otherwise specified.

Our rail/ rail kits now come media blasted free of charge! The plates are media blasted in house using 100 grit garnet media as recommended, directly from Cerakote, for proper application and adhesion of coatings. This same grit media is used for our Parkerizing/ Cerakote process, as well as for our AR FCG Reinforcement Plates. This helps to remove any burrs in addition to creating a uniform surface finish. This prepped surface is the perfect base for any coating you plan to use, or leave it raw for a matte textured finish!

Kit includes:
4 - M3x35mm Button Head Bolts    -    Front Reinforcement Plate Bolts
4 - M4x35mm Button Head Bolts    -    Rear Reinforcement Plate Bolts
1 - M4x35mm Button Head Bolt    -    Additional Bolt for DIY Mac beta
1 - M5x25mm Socket Head Bolt    -    Grip Screw
1 - M5 Square Nut    -    Grip Screw Nut
2 - M6 Socket Cap Nuts    -    Front Trunnion Nuts (Alloy Steel)
1 - M6x25mm Threaded Rod    -    Front Trunnion Rod
2 - M4x25mm Button Head Bolts    -    Front Lower Receiver Bolts
2 - MM4x30mm Button Head Bolts    -    Rear Lower Receiver Bolts
4 - M4 Lock Nuts    -    Lower Receiver Lock Nuts
*1 - .375” Compression Spring    -    Sten Magazine Release Spring (Zinc Plated Steel Musical Wire)
*1 - M4x22mm Dowel Pin    -    Sten Magazine Release Pin
**1 - M3x26mm Dowel Pin    -    Front Hand Stop Pin
***1 - M3x32mm Dowel Pin    -    Feed Ramp Pin
1 - Spring    -    Brace Button (Zinc Plated Steel Musical Wire)
1 - 5x60mm Dowel Pin    -    Brace Pivot Pin
1 - 5x36mm Dowel Pin    -    Brace/Picatinny Pin

* - Sten Lower Only
** - Pin For Front Hand Stop
*** - Glock Lower Only

Optional:

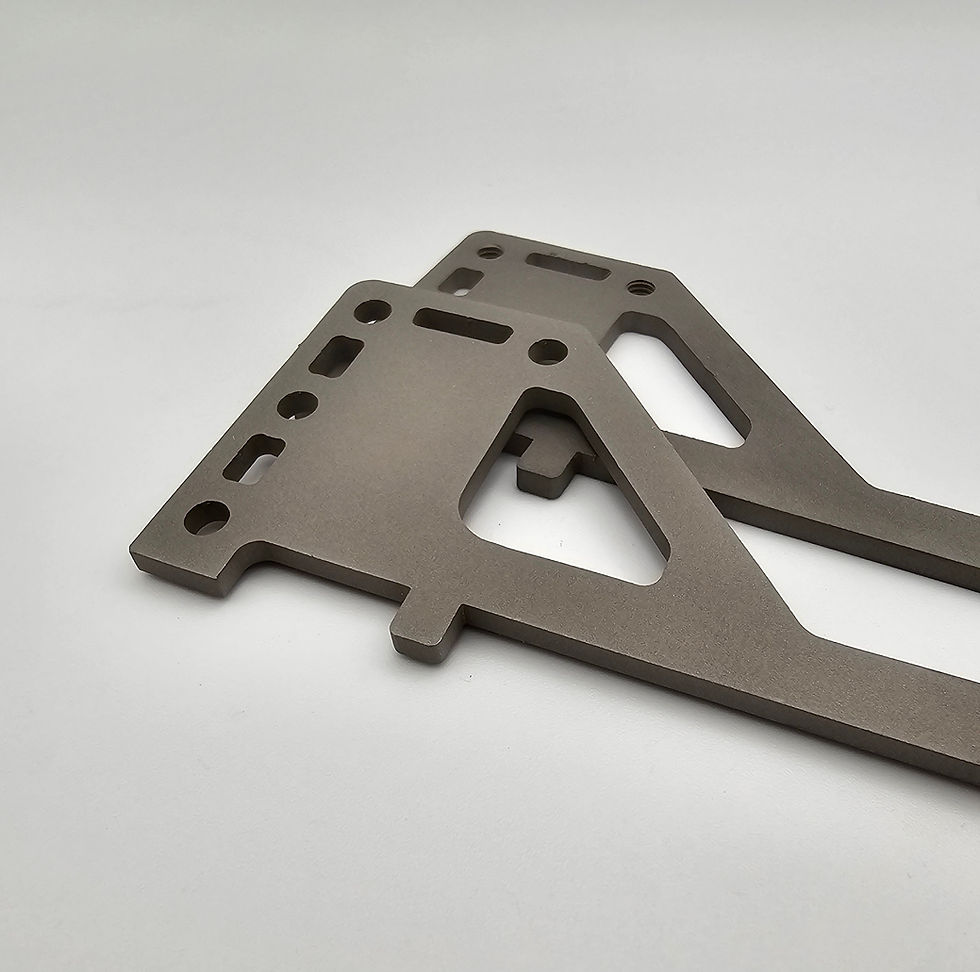

1 - 316 Stainless Steel Laser Cut Plate    -    Right Reinforcement Plate
1 - 316 Stainless Steel Laser Cut Plate    -    Left Reinforcement Plate (Tapped)

NOTE: This kit includes required hardware for all 3 models, Sten, Glock, and 5.7. This kit also includes the required hardware for the "SB" style brace file included in the original file pack. Stainless steel side rails are shipped in a 100 grit garnet media blasted finish. If you would like a raw finish, which may be an easier base for polishing your rails, please contact us before purchase so we can check stock. We usually keep a few sets on hand.
