UMP 11/9 Hardware Kit

**316 STAINLESS STEEL .125" TRUNION PLATE INCLUDED! **

**TRUNION PLATES NOW COME 100 GRIT GARNET MEDIA BLASTED FREE OF CHARGE**

This is all of the hardware required for building the AWCY/MPRTECH UMP 11/9, as per the original file's required hardware list in the original file's (V1.1) "Mildly Enhanced Readme" pdf.

Trunion plates are CNC laser cut and then media blasted in house using 100 grit garnet media as recommended, directly from Cerakote, for proper application and adhesion of coatings. This same grit media is used for our Parkerizing/ Cerakote process, as well as for the rails in many of our other kits. This helps to remove any burrs in addition to creating a uniform surface finish. This prepped surface is the perfect base for any coating you plan to use, or leave it raw for a matte textured finish!

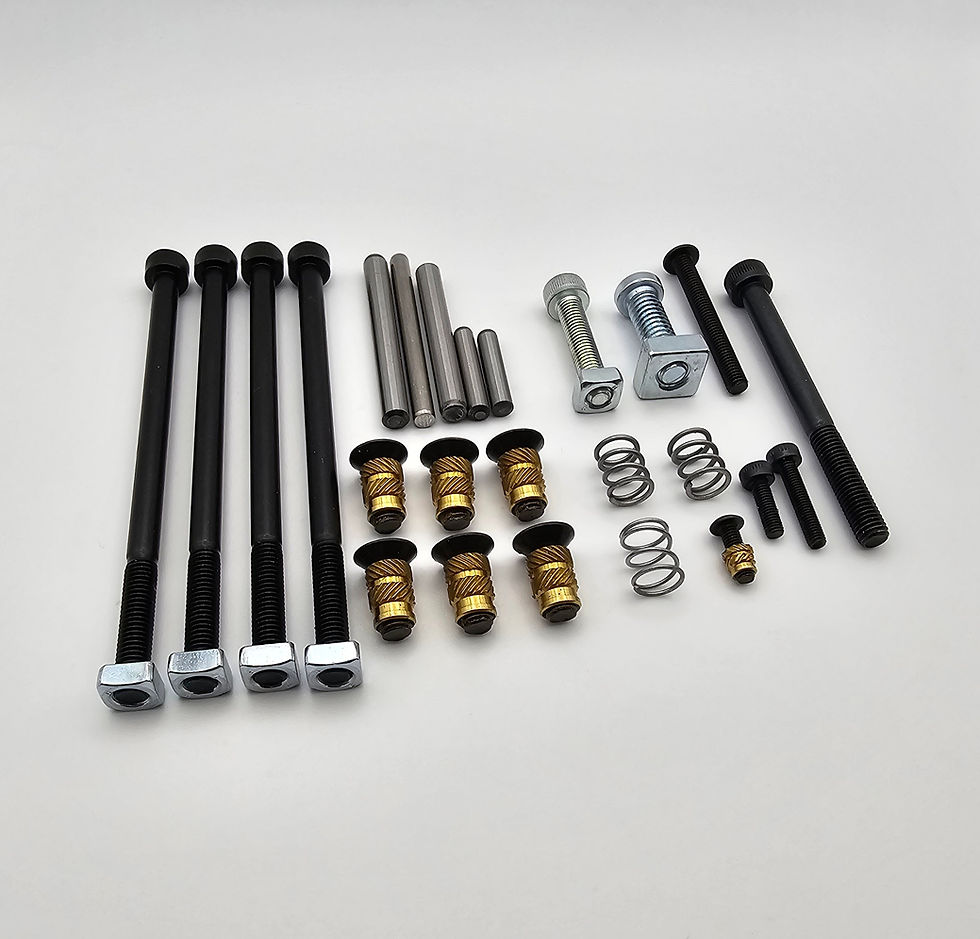

Kit includes:
Front Trunion Plate:
316 Stainless Steel .125" Trunion

Front Sight:
1x M4x20mm Dowel Pin

Rear Sight:
1 - M4x35mm Button Head Bolt
1 - M3x16mm Socket Head Bolt
1 - .375” OD Compression Spring
1 - M3 Heat Set Insert
1 - M3x10mm Button Head Bolt

Takedown Pins:
1 - M5x40mm Dowel Pin
1 - M5x45mm Dowel Pin
1 - M4x45mm Dowel Pin

Trunnion/Handguard Hardware:
6 - M5 Heat Set Inserts
6 - M5x14mm Flat Head Bolts
4 - M5x90mm Socket Head Bolts
4 - M5 Square Nuts

Charging Assembly:
1 - 1/4-20x7/8” Low Profile Socket Head Screw
1 - 1/4-20 Square Nut

G36 Safety Selector:
1 - M3x10mm Socket Head Bolt

Magazine Release:
1 - M4x22mm Dowel Pin
1 - .375” Compression Spring

Lower Receiver:
1 - M5 Square Nut
1 - M5x25mm Socket Head Bolt

BRACE:
1 - M5x60mm Socket Head Bolt
1 - .375” Compression Spring

NOTE: If you would like a raw finish trunion, which may be an easier base for polishing, please contact us before purchase so we can check stock. We usually keep a few on hand. Please keep in mind these would come raw with possible marks from the laser cutting process. We recommend the media blasted versions as they have a better surface finish and the process is free!
